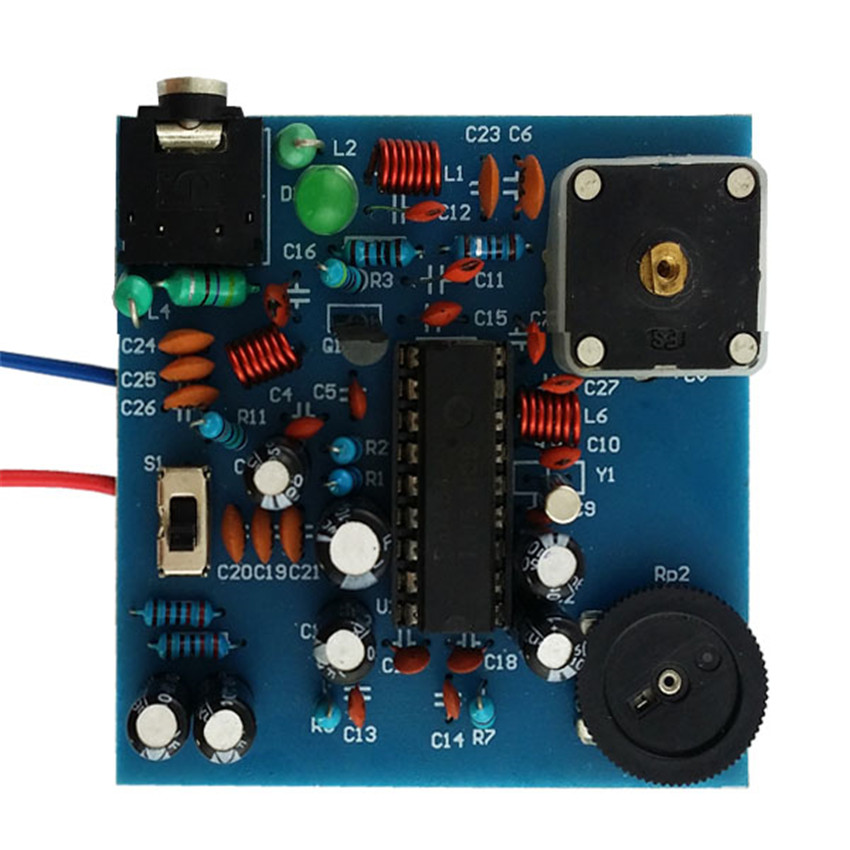

BA1404 based DIY FM stereo transmitter Kit

Diy Kit BA1404 BP type FM transmitter Board Kit FM stereo transmitter Board Kit Electronic suite
Click to see details
Diy Kit BA1404 BP type FM transmitter Board Kit FM stereo transmitter Board Kit Electronic suite
Diy Kit BA1404 BP type FM transmitter Board Kit FM stereo transmitter Board Kit Electronic suite

100%
of buyers enjoyed this product!


Price: US $10.22 / piece
Discount Price: US $9.20 / piece

from AliExpress

45 deys Money back45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time DeliveryOn-time Delivery
Guarantees: On-time Delivery 60 days

Share:



The classic BA1404 FM stereo transmitter, to help learn and master the operating principle of pilot FM stereo transmitter radio, assembly, low voltage, high stereo separation, good sound quality.

The board uses a FM stereo transmitter integrated BA1404 and 9018 RF amplifier circuit. Frequency stabilization. 3V voltage by advanced pilot system FM stereo transmitter technology,

DVD player, TV, CD, with the radio listening sound equipment of stereo audio signals are converted into FM stereo radio, can realize the wireless hi fi stereo audio signal transfer, the board in addition to transmit stereophonic signal, can also be used as a wireless microphone,

when the insertion stereo audio signal as FM stereo transmitter use, when the insertion Lapel Microphone transmitter variable FM wireless microphone, and the microphone volume can be adjusted.

Audio transmission line or clip type microphone wire for transmitting antenna. Working frequency in the 85 to 115MHz frequency continuously adjustable, buyers can debug their own higher or lower than this band, the bandwidth of about 20 MHz.

The reference transmission distance in open environment is about 10 to 100 meters. Suitable for school counseling students radio teaching or radio enthusiasts assembly, complete set of detailed circuit schematic and assembly drawing and debugging instructions. Does not match the audio transmission line and the microphone line.

The classic BA1404 FM stereo transmitter suite, to help learn and master the operating principle of pilot FM stereo transmitter radio, assembly, low voltage, low voltage, high stereo separation, good sound quality.
